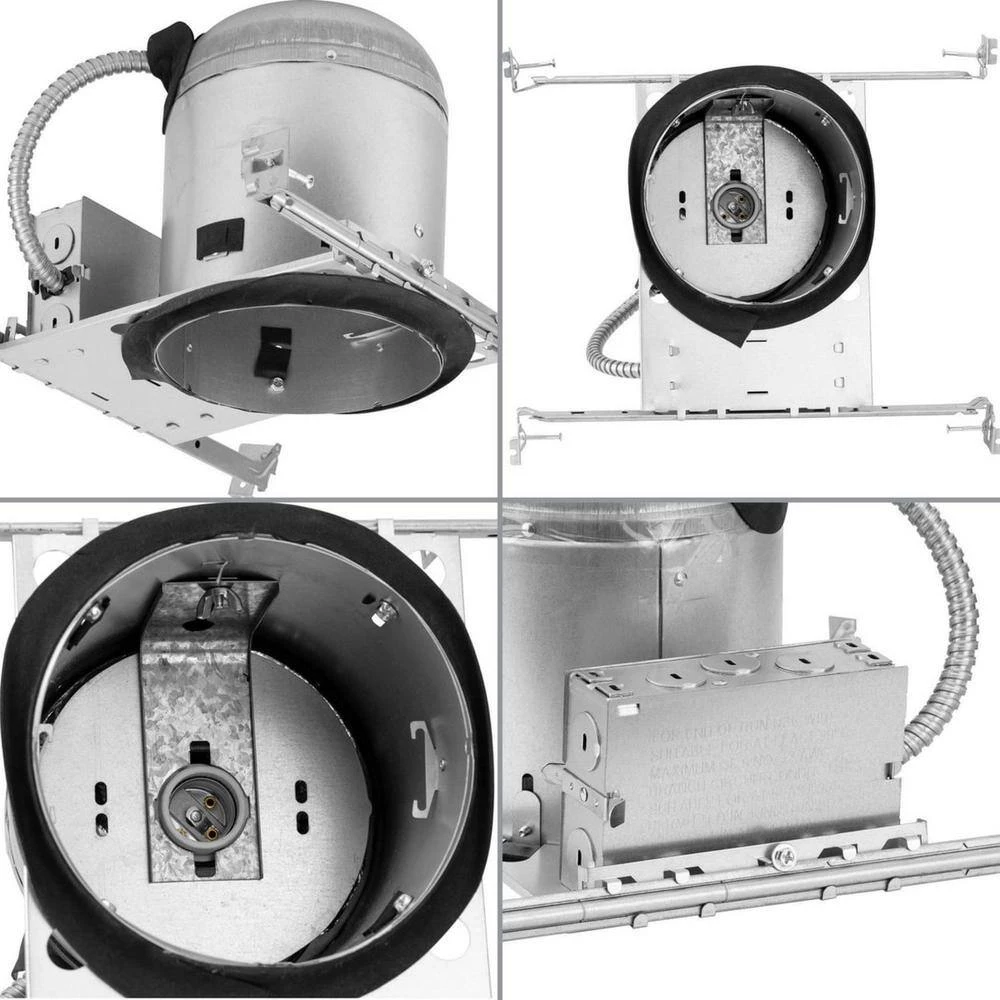

6 in. Steel Recessed New Construction Housing with Quick Link Connector for 6 in. Trim by Progress Lighting

This 6 in. Recessed Housing with Quick Link Connector has several great installation features plus an Air-Tight rating. It is ideal for IC and non-IC new construction applications. Gasketed Air-Tight housing restricts airflow from conditioned spaces into unconditioned attic space, preventing unnecessary HVAC costs and improving the overall home energy efficiency. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. The lamp housing compartment can be adjusted to fit ceiling thicknesses from 1/2 in. to 1-1/4 in. It features a universal J-box with snap-out sides. Wiring is made easy with the included wiring quick-connects that allow simple installation of 12-20 AWG wire without using separate wire nuts – simply strip supply wires and push in. The housing has pre-installed nails on the adjustable hanger bars which are easily installed in regular lumber, engineered lumber and laminated beams. Hanger bars include T-bar mounting clamp for use in suspended t-grid ceilings. The bar hangers have a maximum span of 24 in. and are scored in 2 locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. It is UL and CUL Listed for damp locations and is thermally protected against improper use of lamp.

• Housing and frame are constructed from die-formed corrosion resistant galvanized steel
• Gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage and the lamp housing compartment can be adjusted to fit ceiling thicknesses from 1/2 in. to 1-1/4 in.
• Wiring is made easy with the included wiring quick-connects that allow simple installation of 12-20 AWG wire without using separate wire nuts – simply strip supply wires and push in
• Bar hangers have a maximum span of 24 in. and are scored in 2 locations for fast, clean breaking, allowing housing installation in very narrow joist spacings and includes pre-installed framing nails on the bar hangers, making installation quick and efficient and the hanger bars include T-bar mounting clamp for use in suspended t-grid ceilings

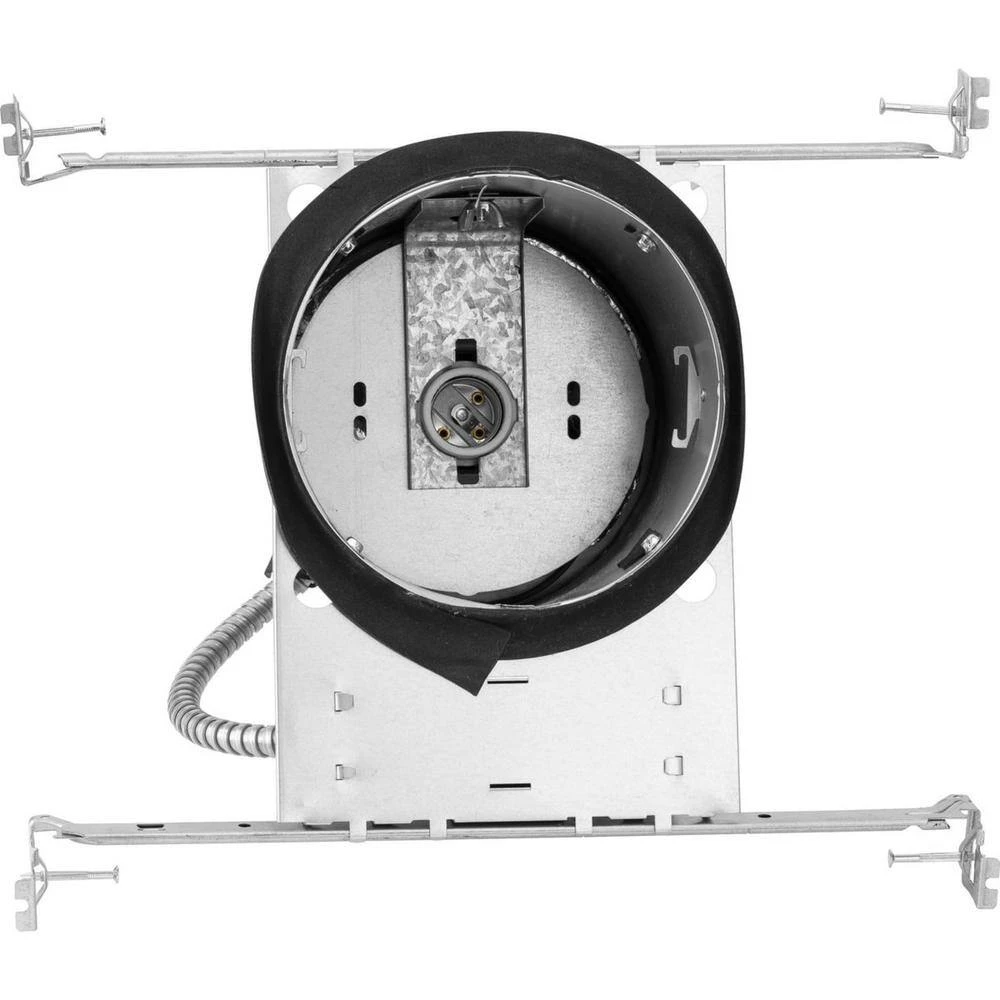

• Features a universal J-box with snap-out sides

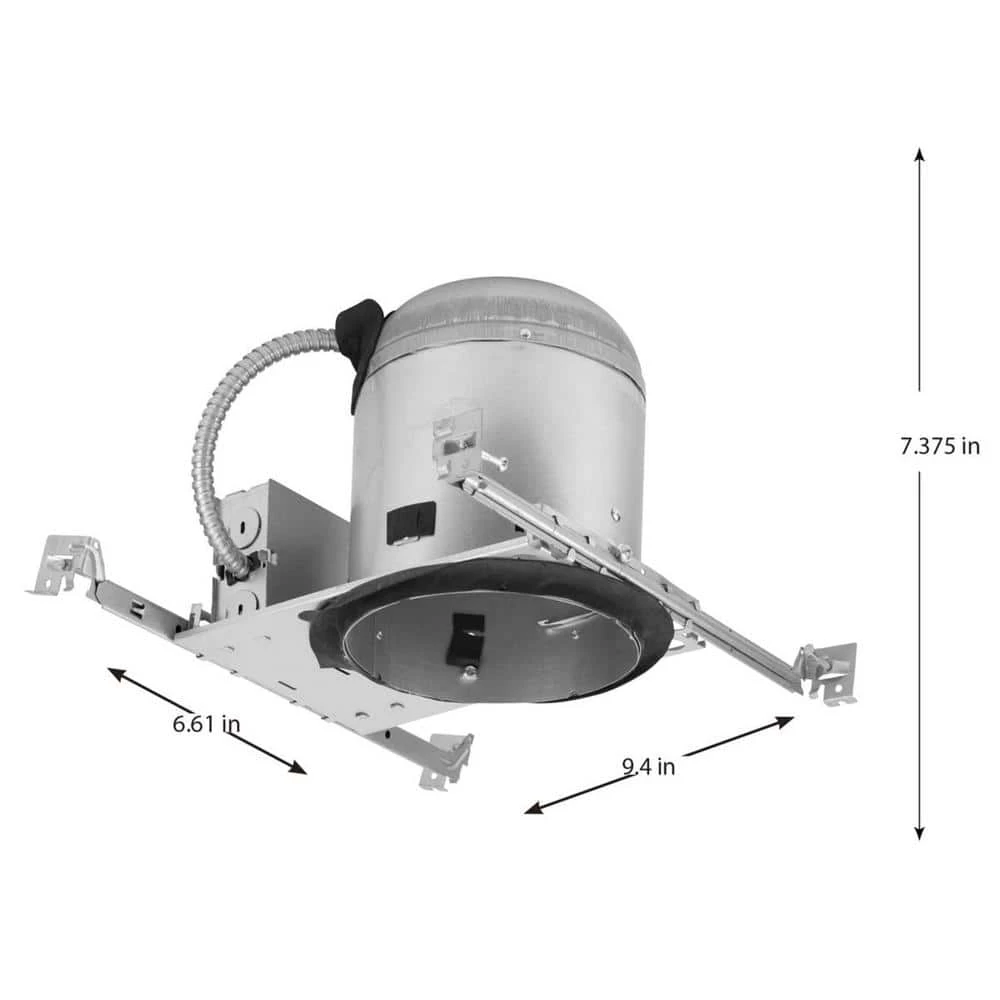

• Measures 6.61 in. L x 9.4 in. W x 7.375 in. H
• Uses 1 BR40 light source (sold separately) 90-Watt maximum

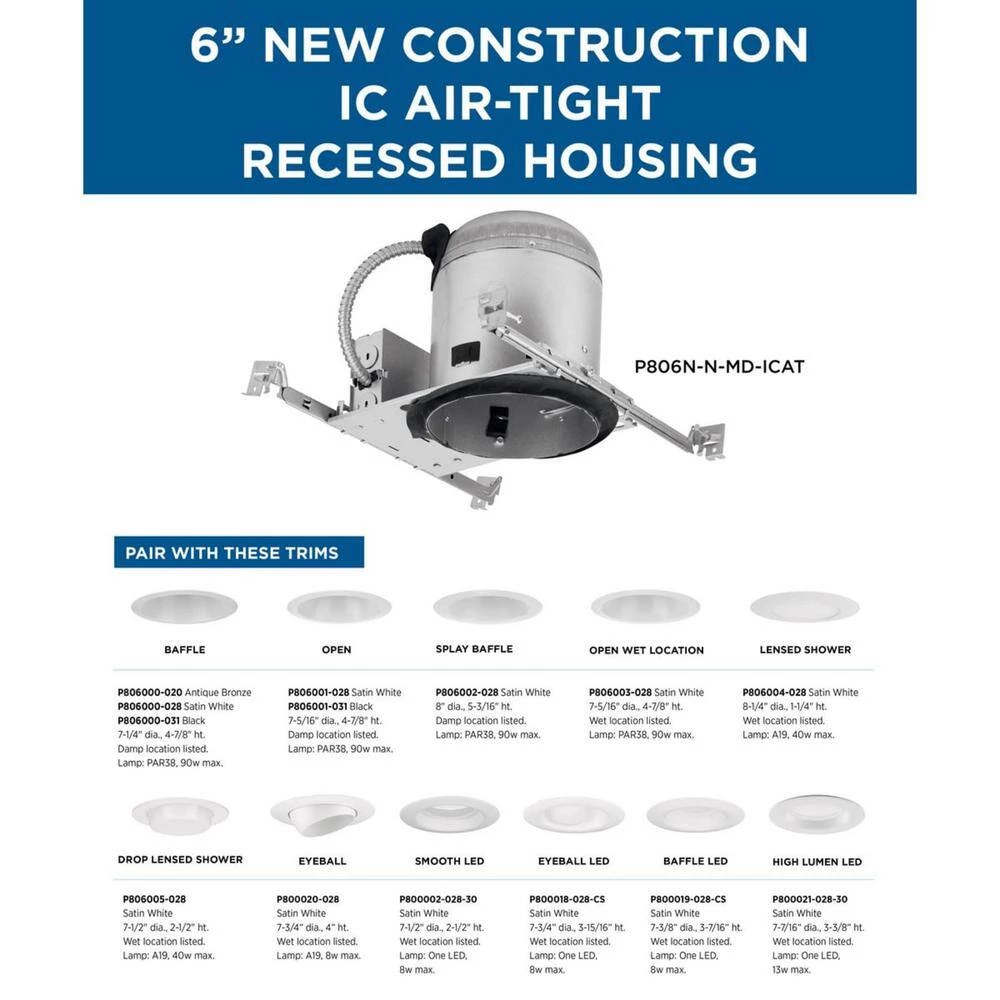

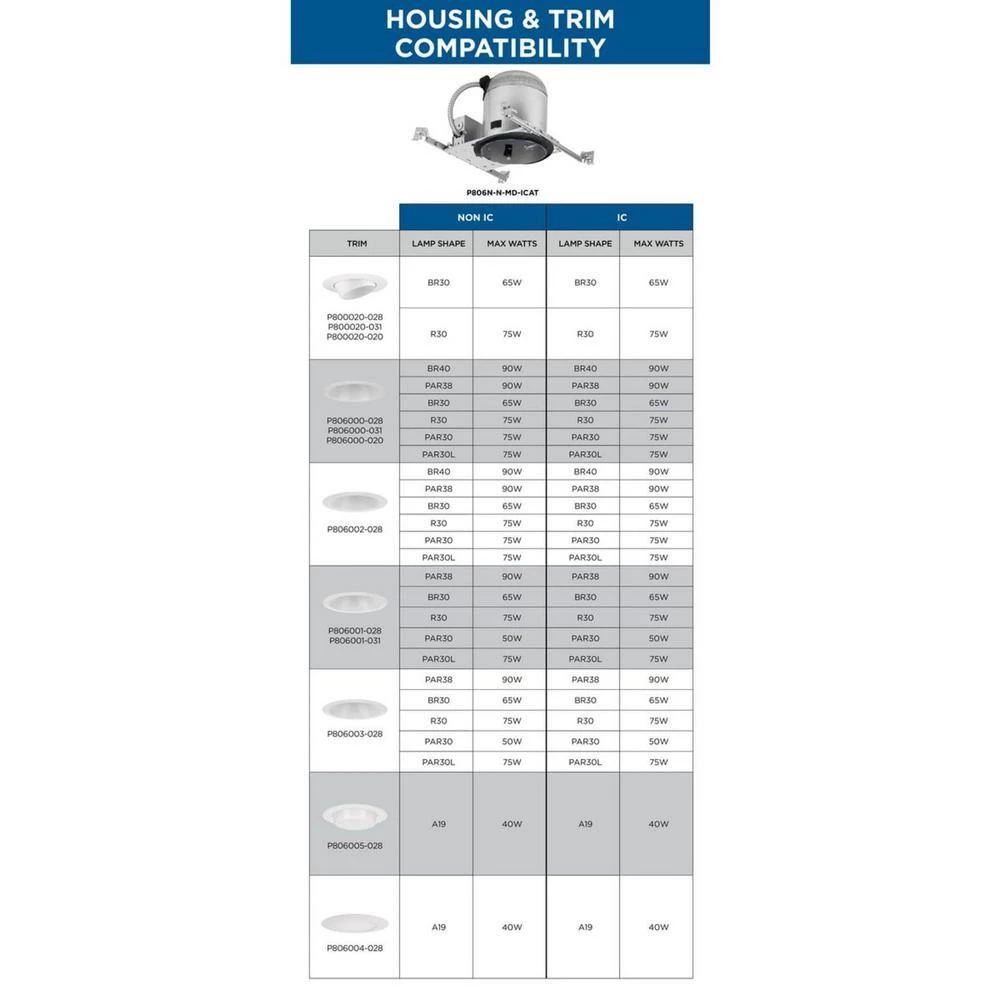

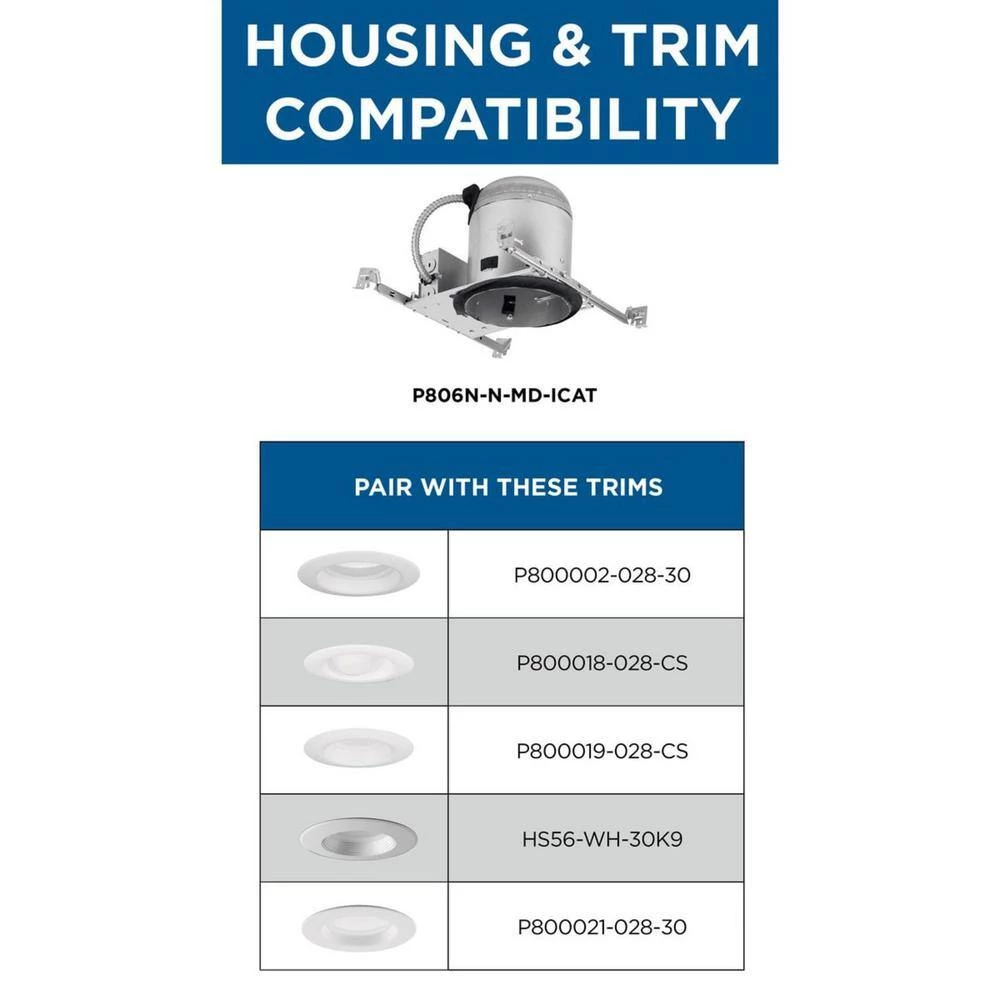

• Housing is compatible with a variety of trims and finishes
• cULus damp location rating makes this trim ideal for use in a variety of room settings where water may be present
• Warranty: our 1-year limited warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support
