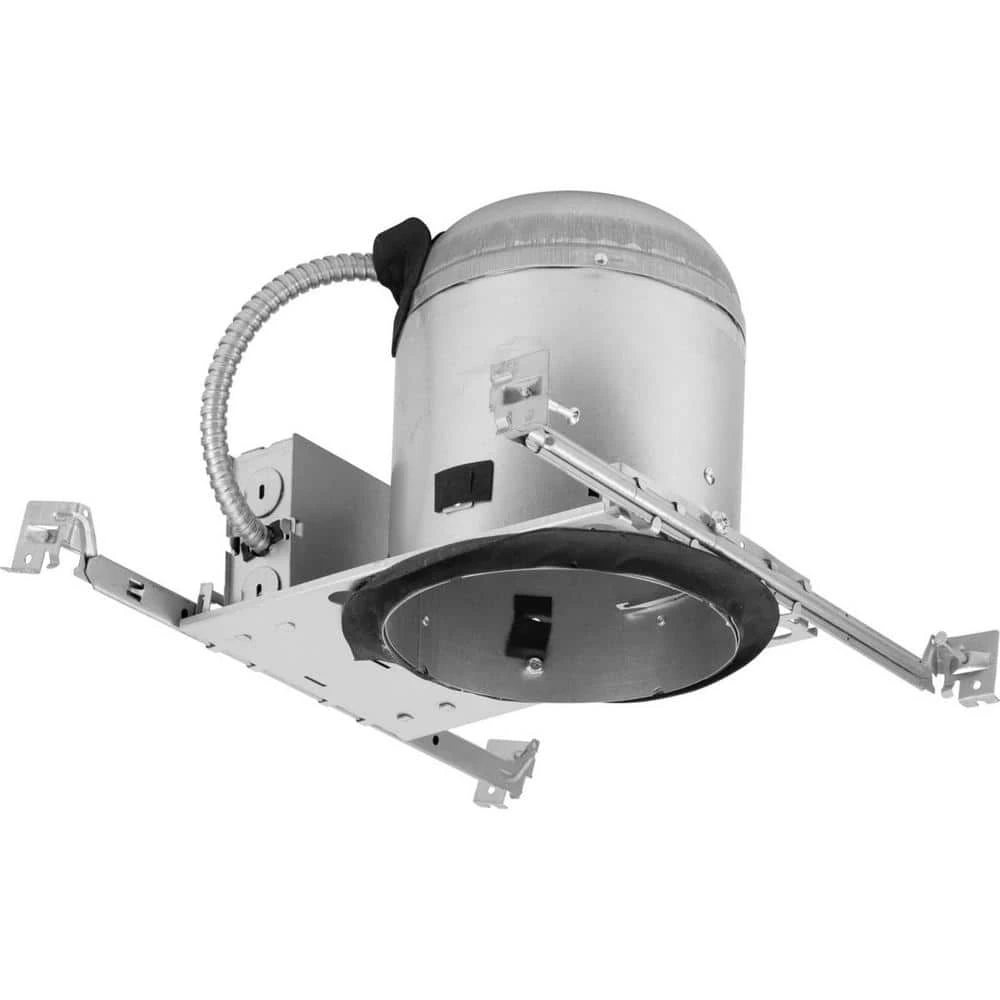

6 in. Steel Recessed Shallow New Construction Housing with Quick Link Connector for 6 in. Trim by Progress Lighting

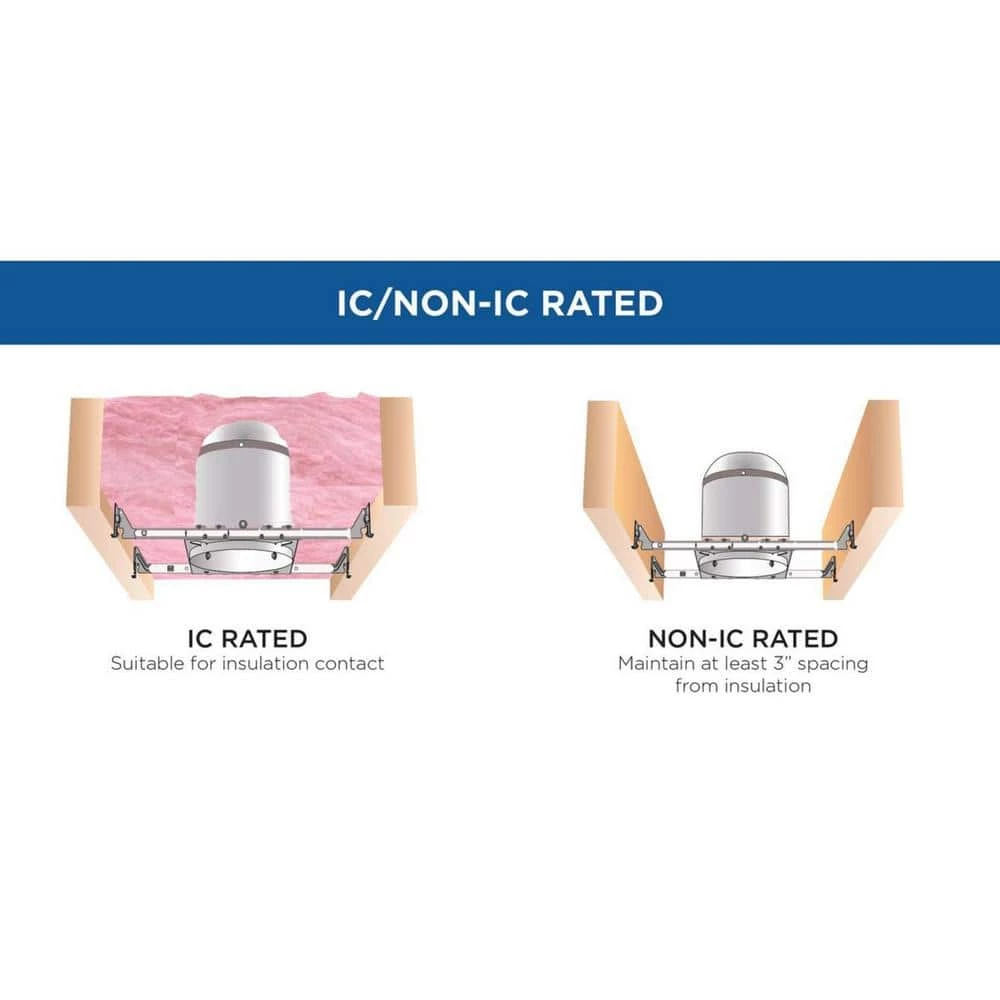

This 6 in. Shallow Recessed Housing with Quick Link Connector has several great installation features plus an Air-Tight rating. Its shallow design is ideal for 2×6 construction applications. It is ideal for IC and non-IC new construction applications. Gasketed Air-Tight housing restricts airflow from conditioned spaces into unconditioned attic space, preventing unnecessary HVAC costs and improving the overall home energy efficiency. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. The lamp housing compartment can be adjusted to fit ceiling thicknesses from 1/2 in. to 1-1/4 in. It features a universal J-box with snap-out sides. Wiring is made easy with the included wiring quick-connects that allow simple installation of 12-20 AWG wire without using separate wire nuts – simply strip supply wires and push in. The housing has pre-installed nails on the adjustable hanger bars which are easily installed in regular lumber, engineered lumber and laminated beams. Hanger bars include T-bar mounting clamp for use in suspended t-grid ceilings. The bar hangers have a maximum span of 24 in. and are scored in 2 locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. It is UL and CUL Listed for damp locations and is thermally protected against improper use of lamp.

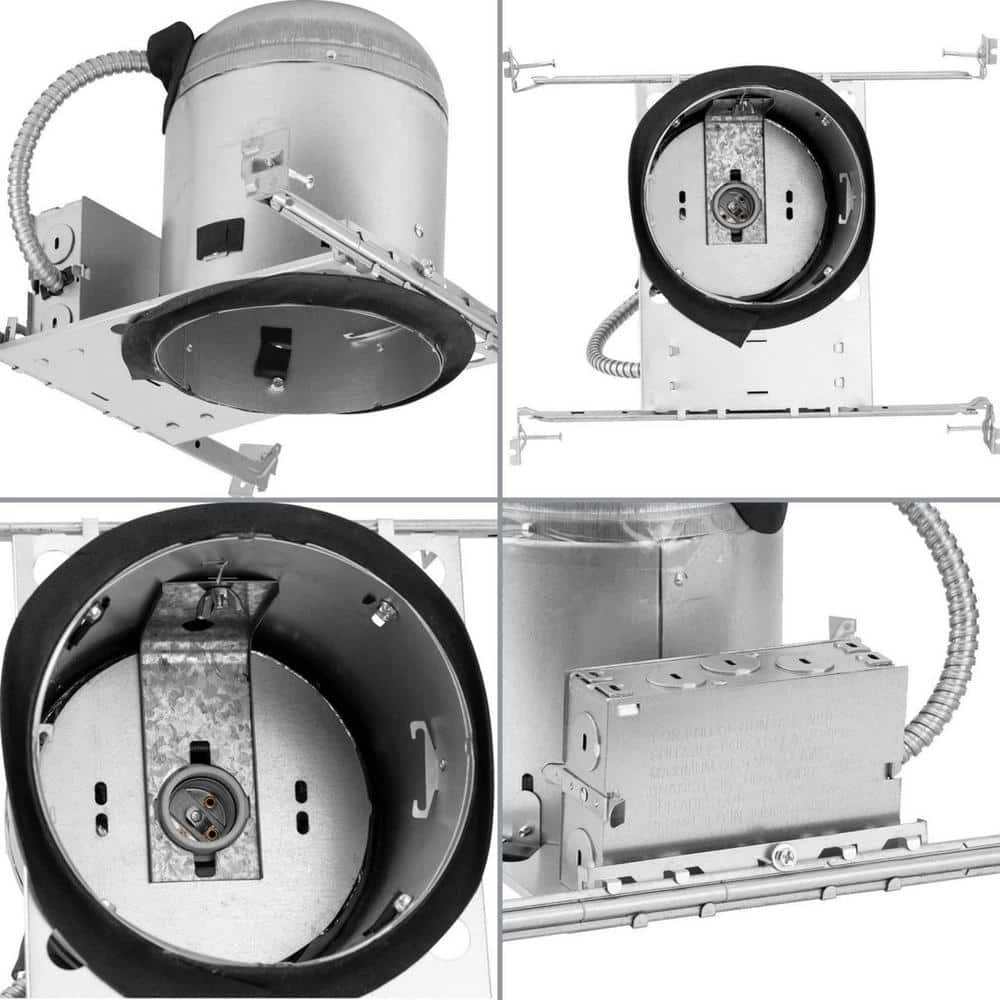

• Housing and frame are constructed from die-formed corrosion resistant galvanized steel
• Gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage and the lamp housing compartment can be adjusted to fit ceiling thicknesses from 1/2 in. to 1-1/4 in.
• Wiring is made easy with the included wiring quick-connects that allow simple installation of 12-20 AWG wire without using separate wire nuts – simply strip supply wires and push in
• Housing has pre-installed nails on the adjustable hanger bars which are easily installed in regular lumber, engineered lumber and laminated beams
• Hanger bars include T-bar mounting clamp for use in suspended t-grid ceilings and the bar hangers have a maximum span of 24 in. and are scored in two locations for fast, clean breaking, allowing housing installation in very narrow joist spacings

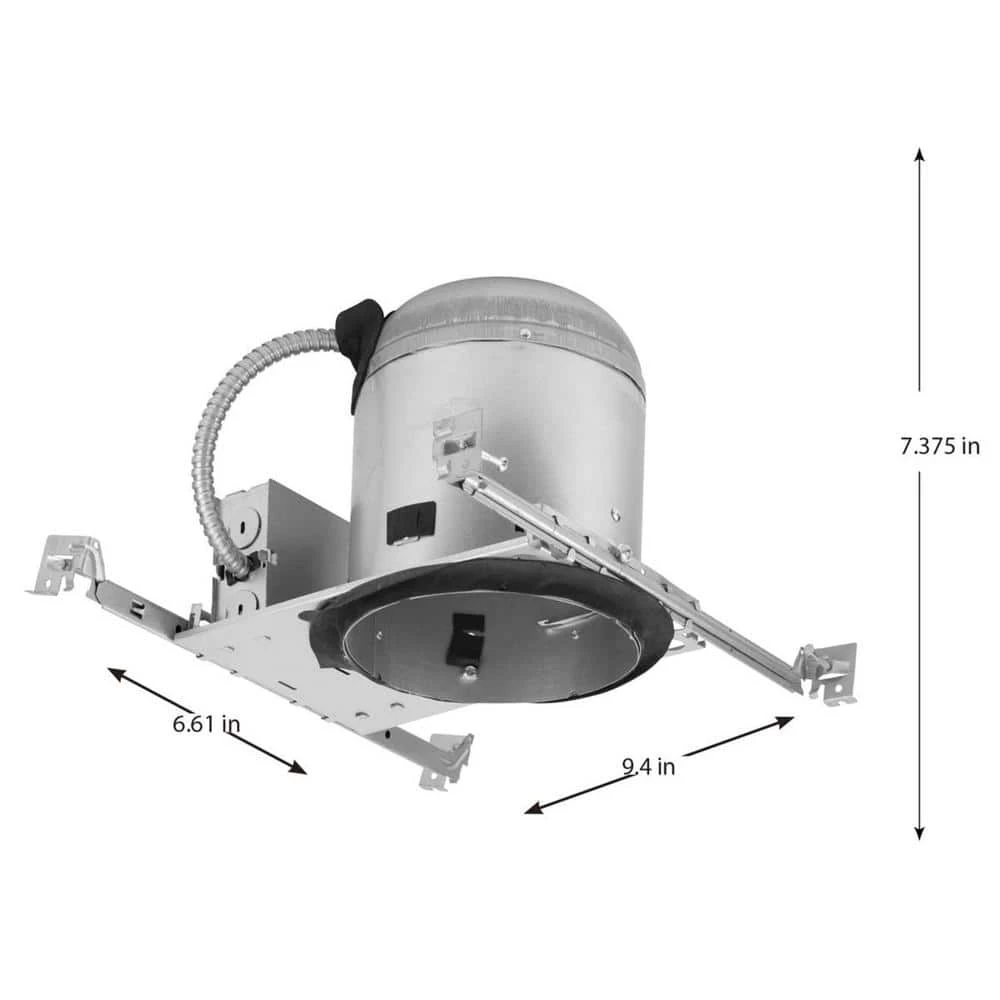

• Measures 6.6 in. L x 9.4 in. W x 5.6 in. H

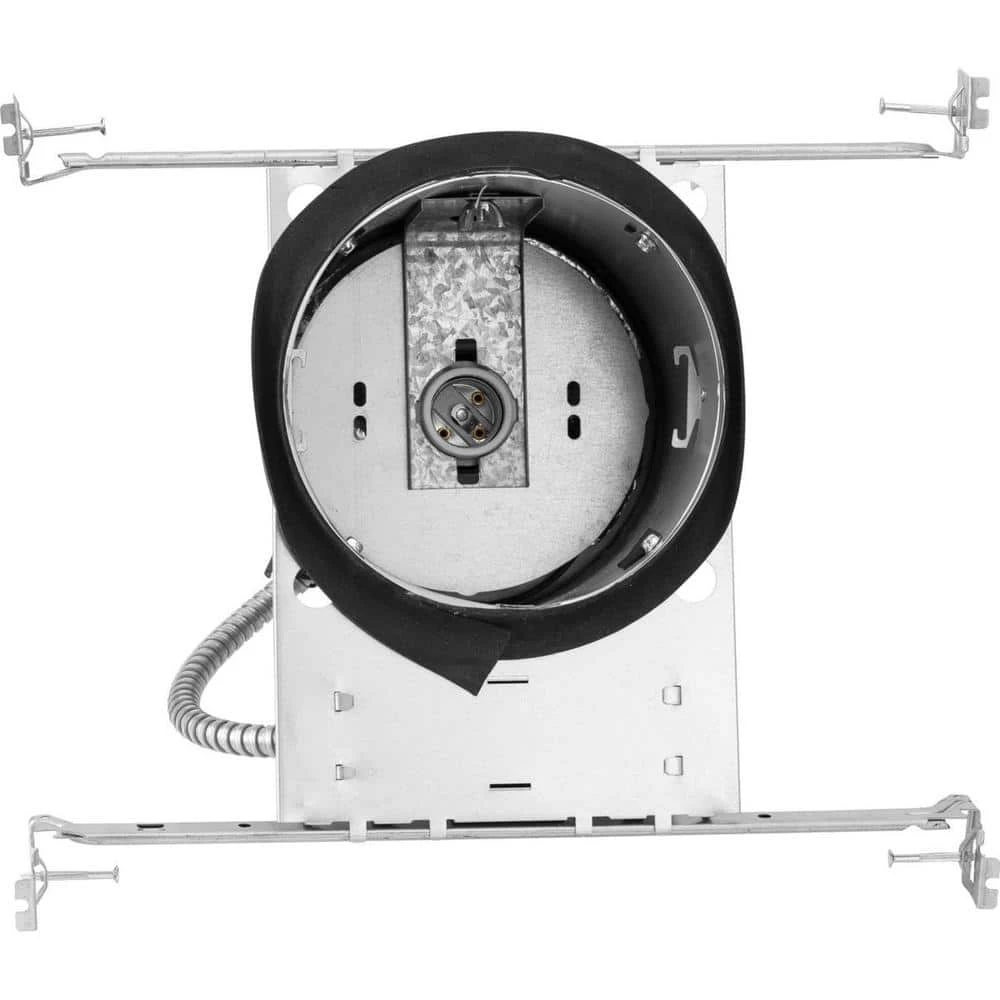

• Housing is provided with a medium base socket for a variety of bulbs – which are based on the trim used

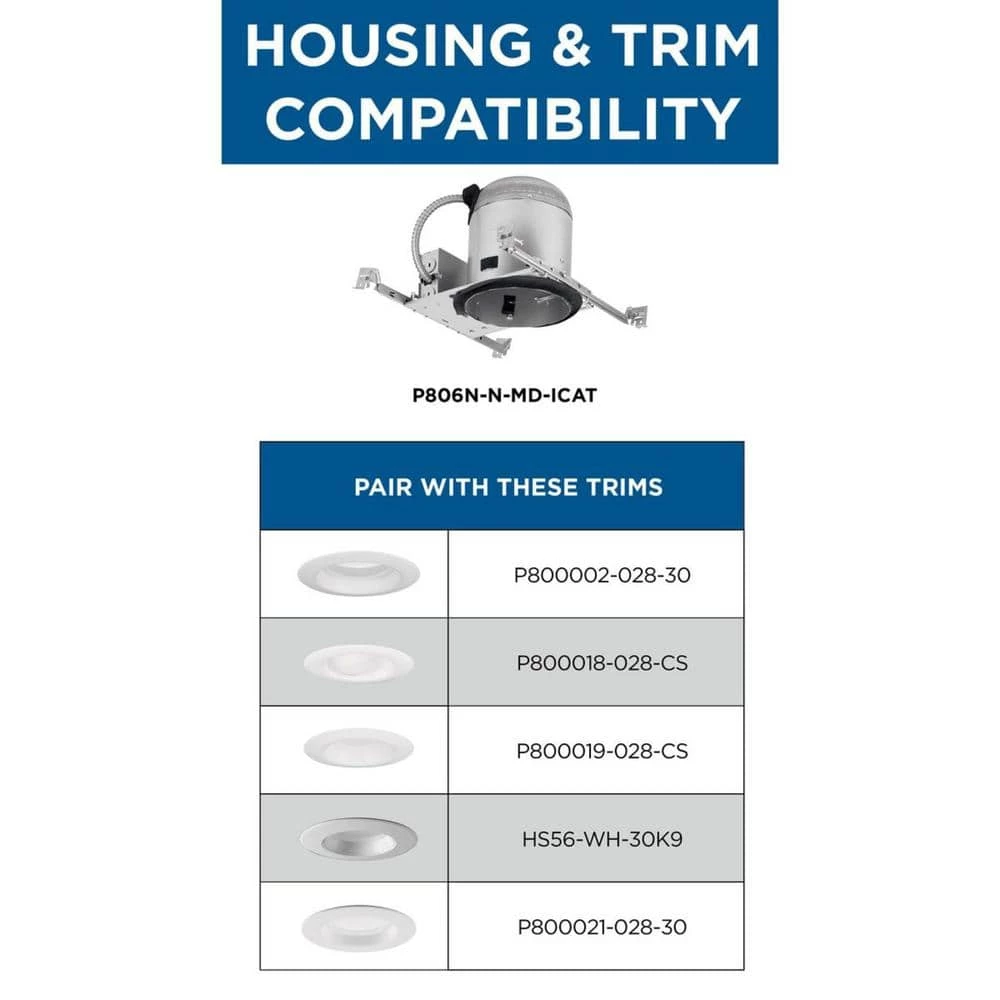

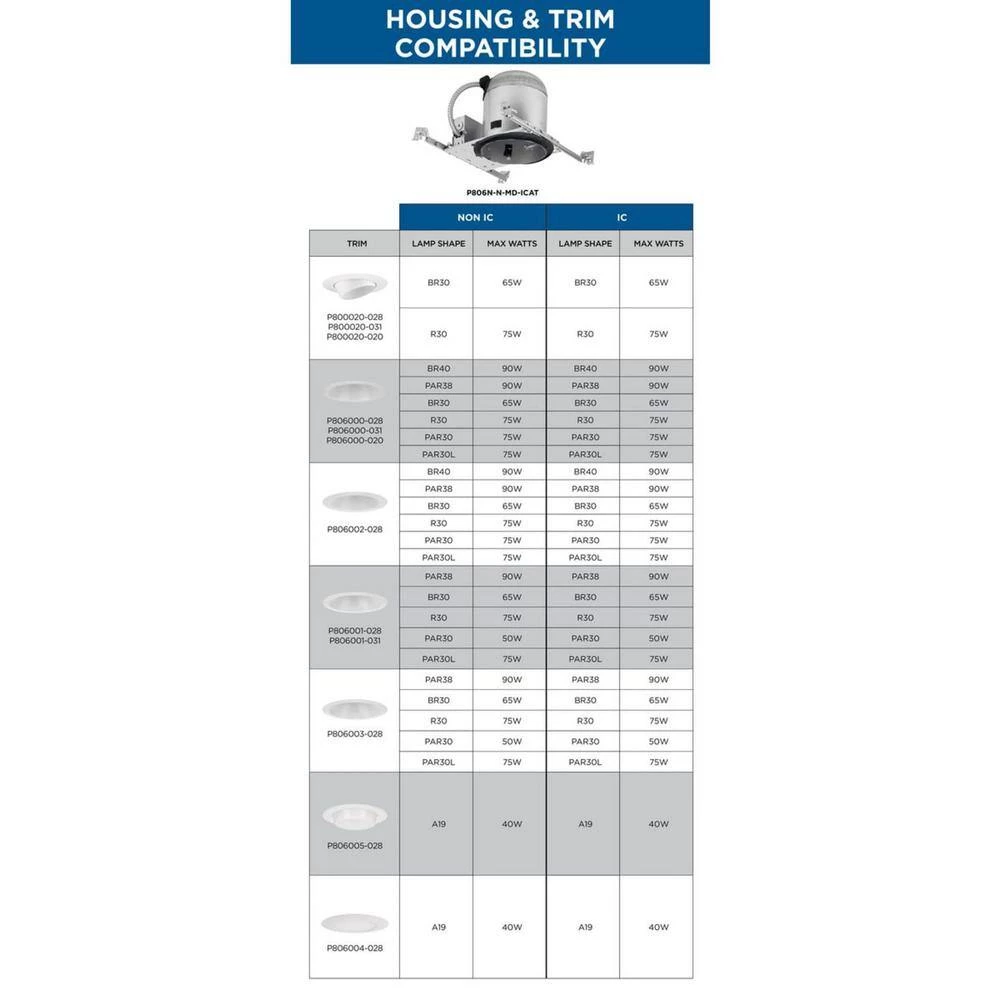

• Housing is compatible with a variety of trims and finishes to create different lighting effects or to easily match any decor
• cULus damp location rating makes this trim ideal for use in a variety of room settings where water may be present
• Warranty: our 1-year limited warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support
